Tile Roof - Solar Panel Mounting kit to Mount for 8 Solar Panels, with Clamps, Tile Roof Mount & 88 Inch Rails
Tile Roof - Solar Panel Mounting kit to Mount for 8 Solar Panels, with Clamps, Tile Roof Mount & 88 Inch Rails
Regular price
$632.00 USD
Regular price
$680.00 USD
Sale price
$632.00 USD
Unit price
/
per

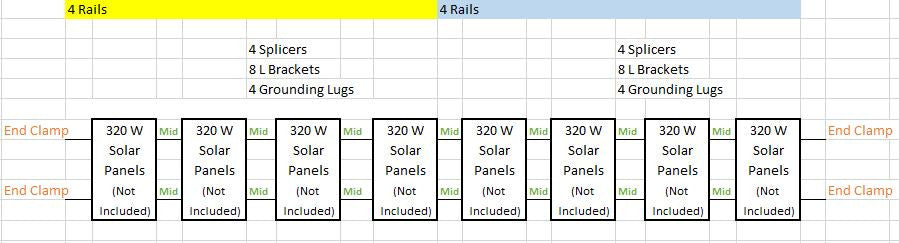

TILE ROOK KITS TO MOUNT 8 PANELS IN A ROW.
This kit will mount 8 solar panels (42 inches wide) ) or 9 smaller Solar Panels (about 26 inches wide). The Solar Panels can have a thickness of 1 3/8 inch to 1 15/16 inch.

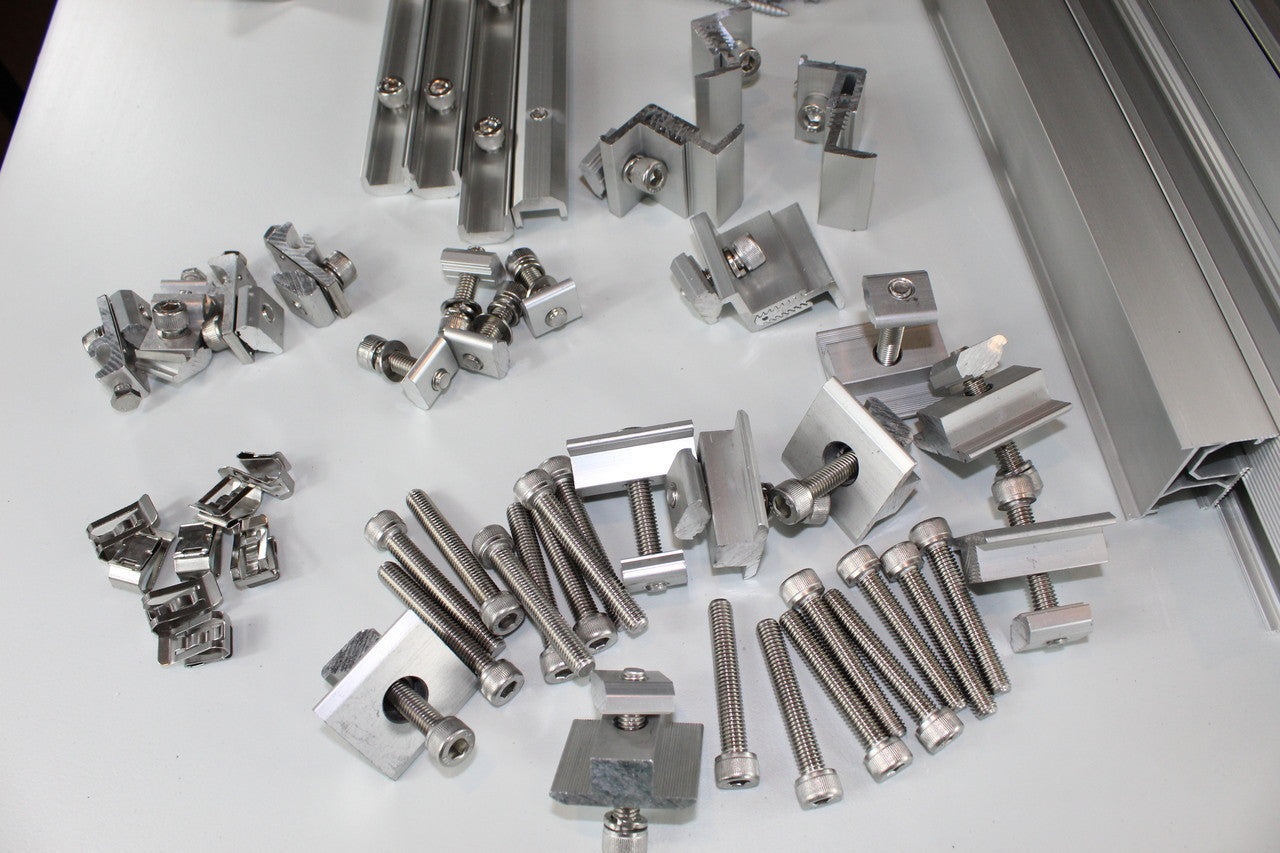

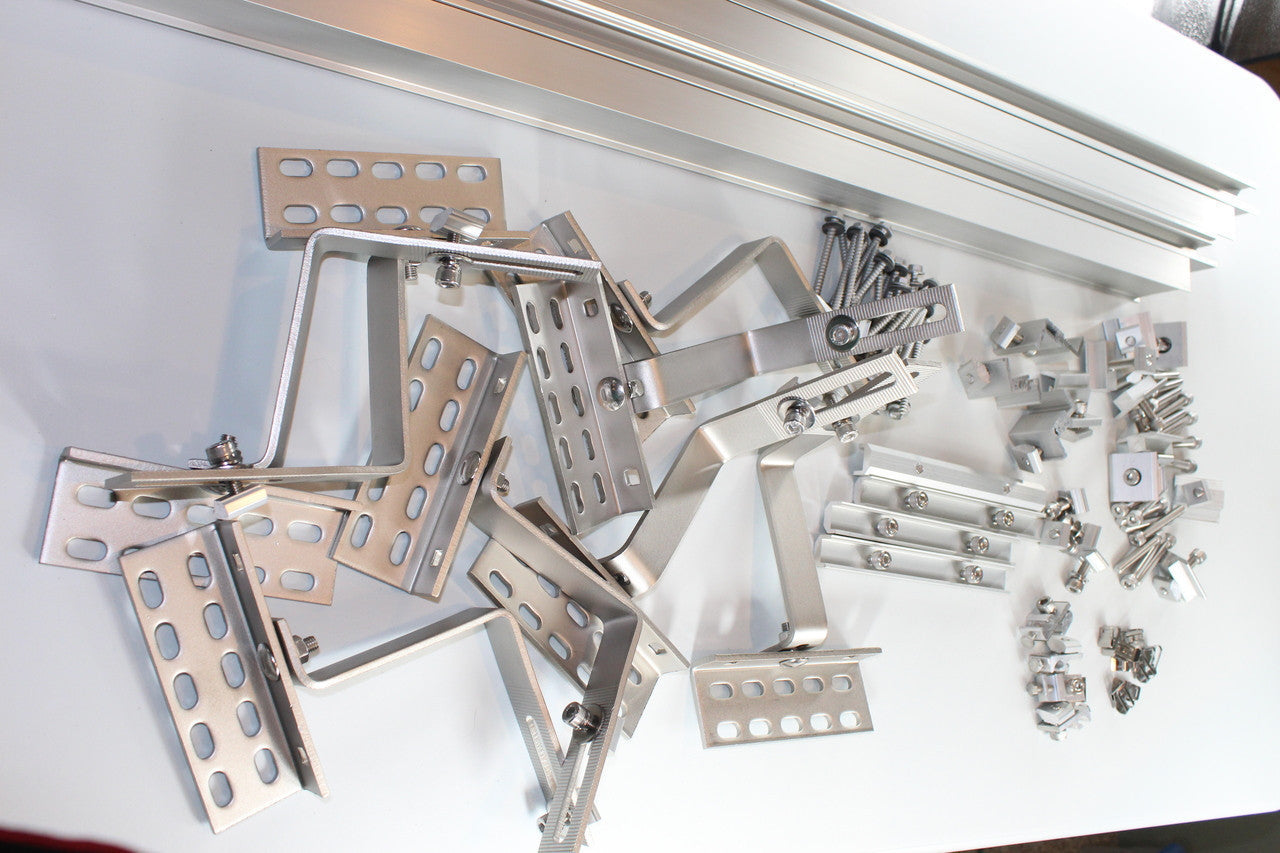

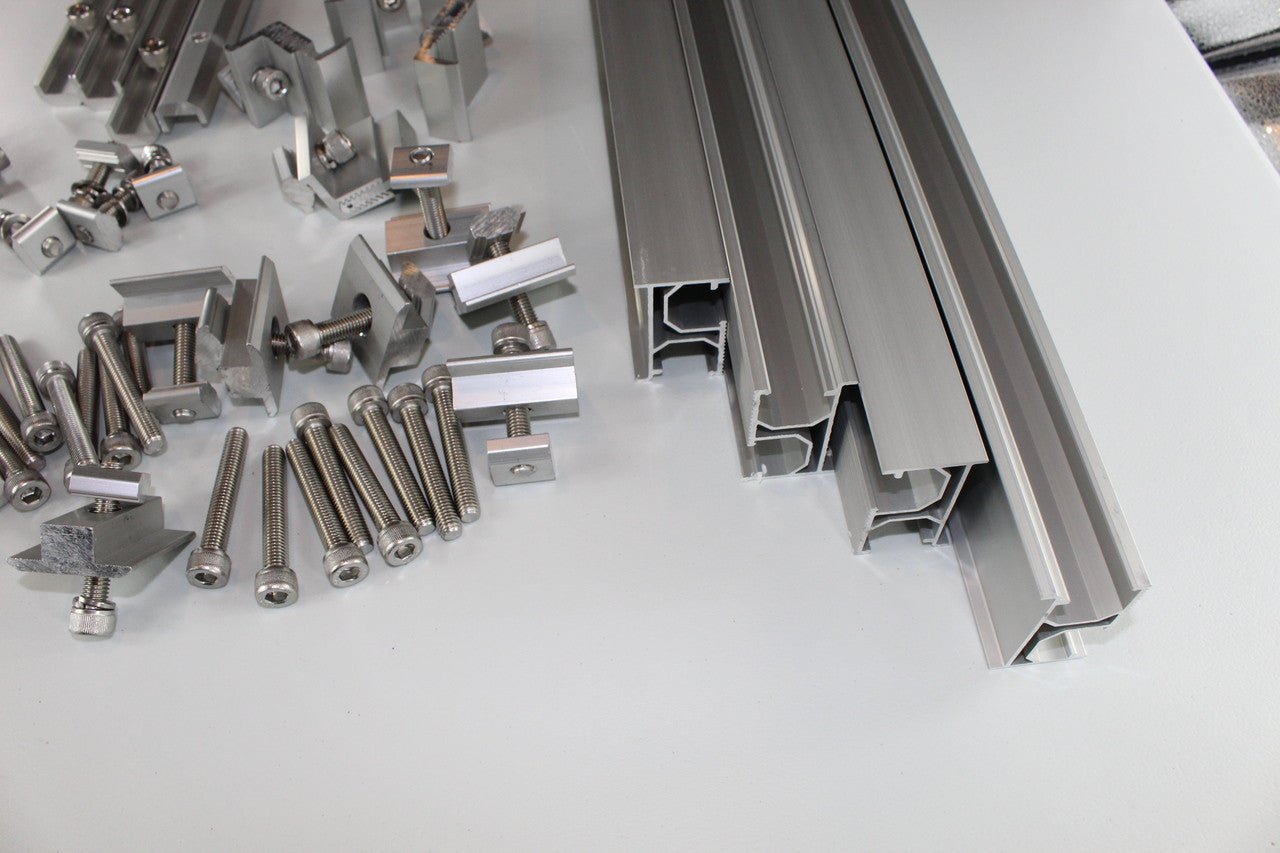

Kit Contains:
- 8- 7.3 feet Rails (88 Inches 2250mm length)
- 12- Rail Splicers for 6 splicing points

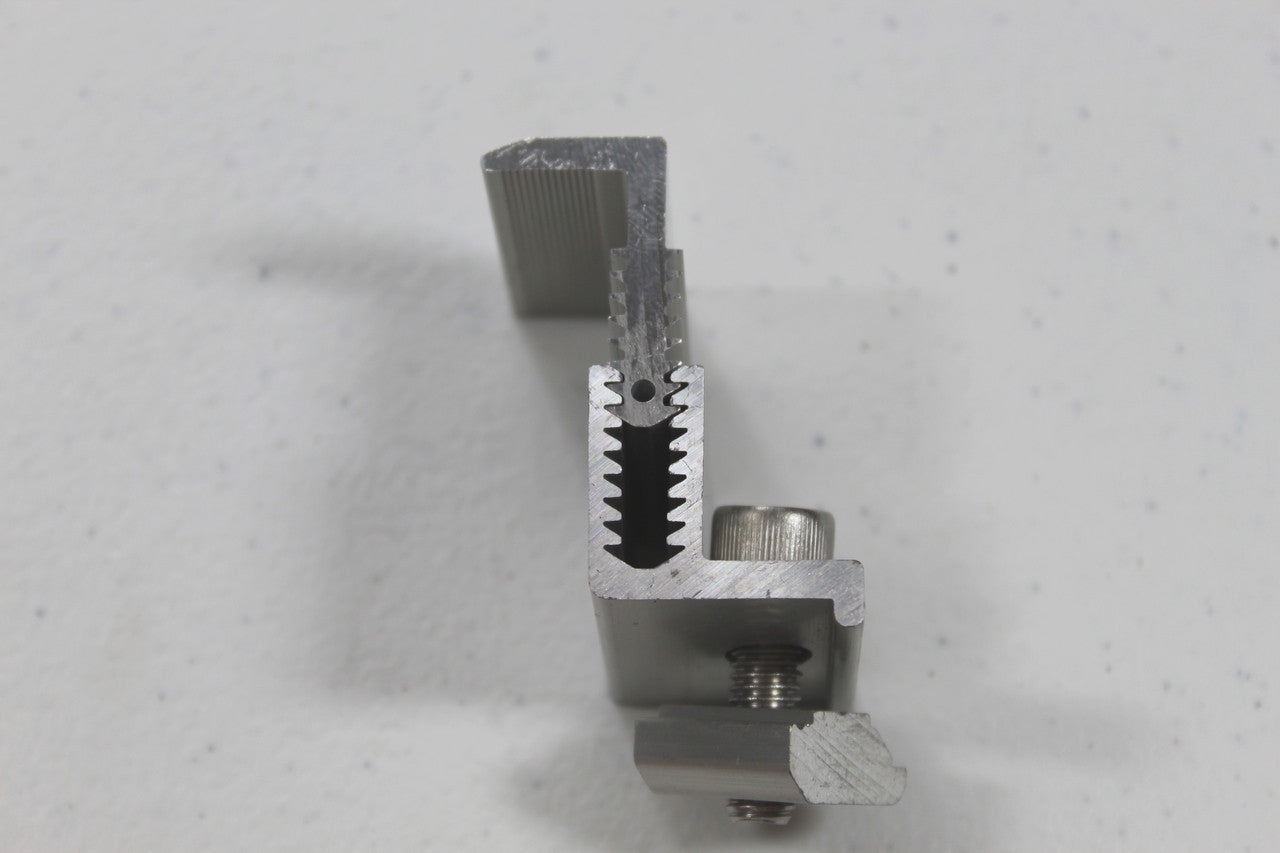

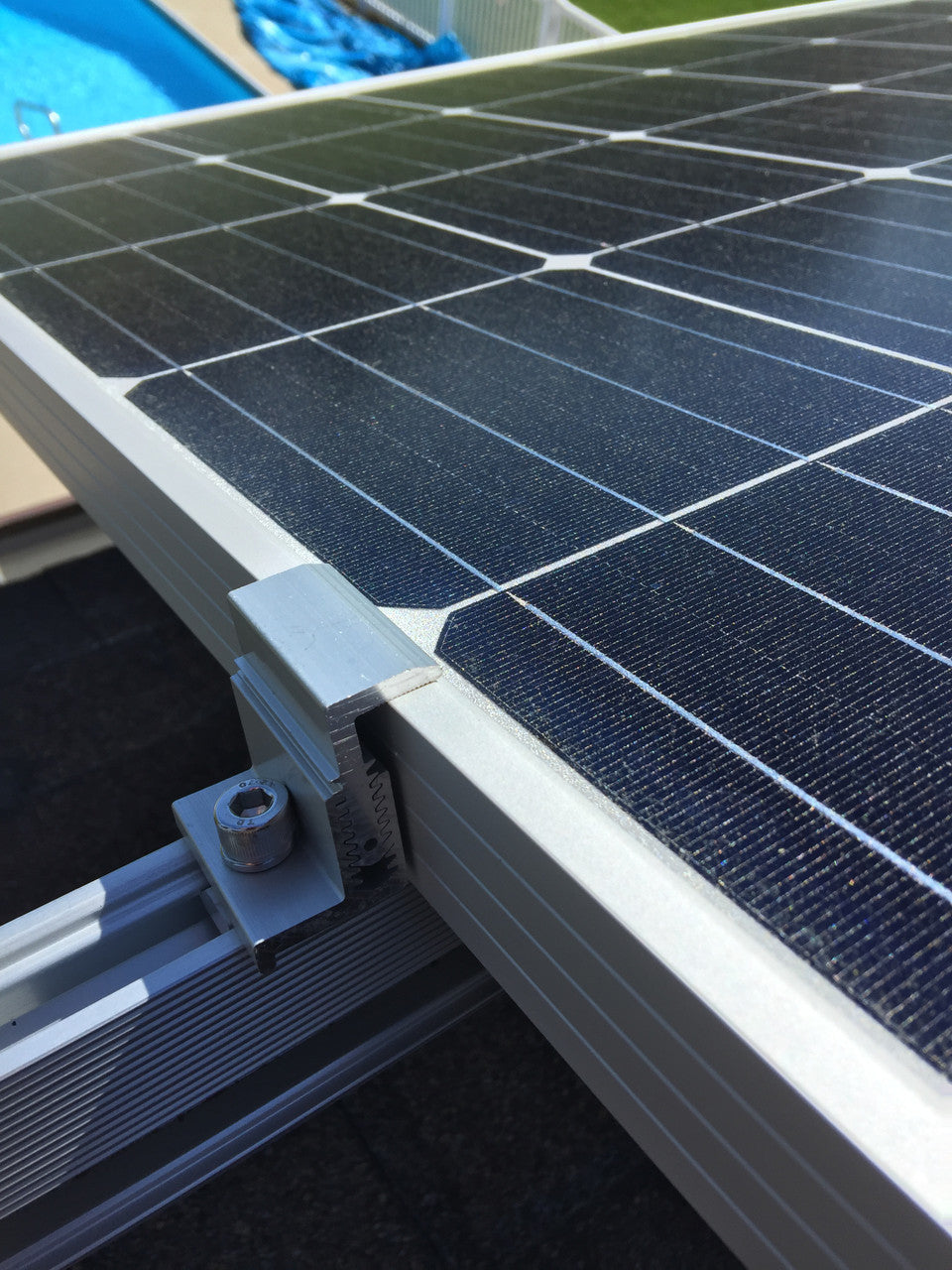

- 4- End Clamps

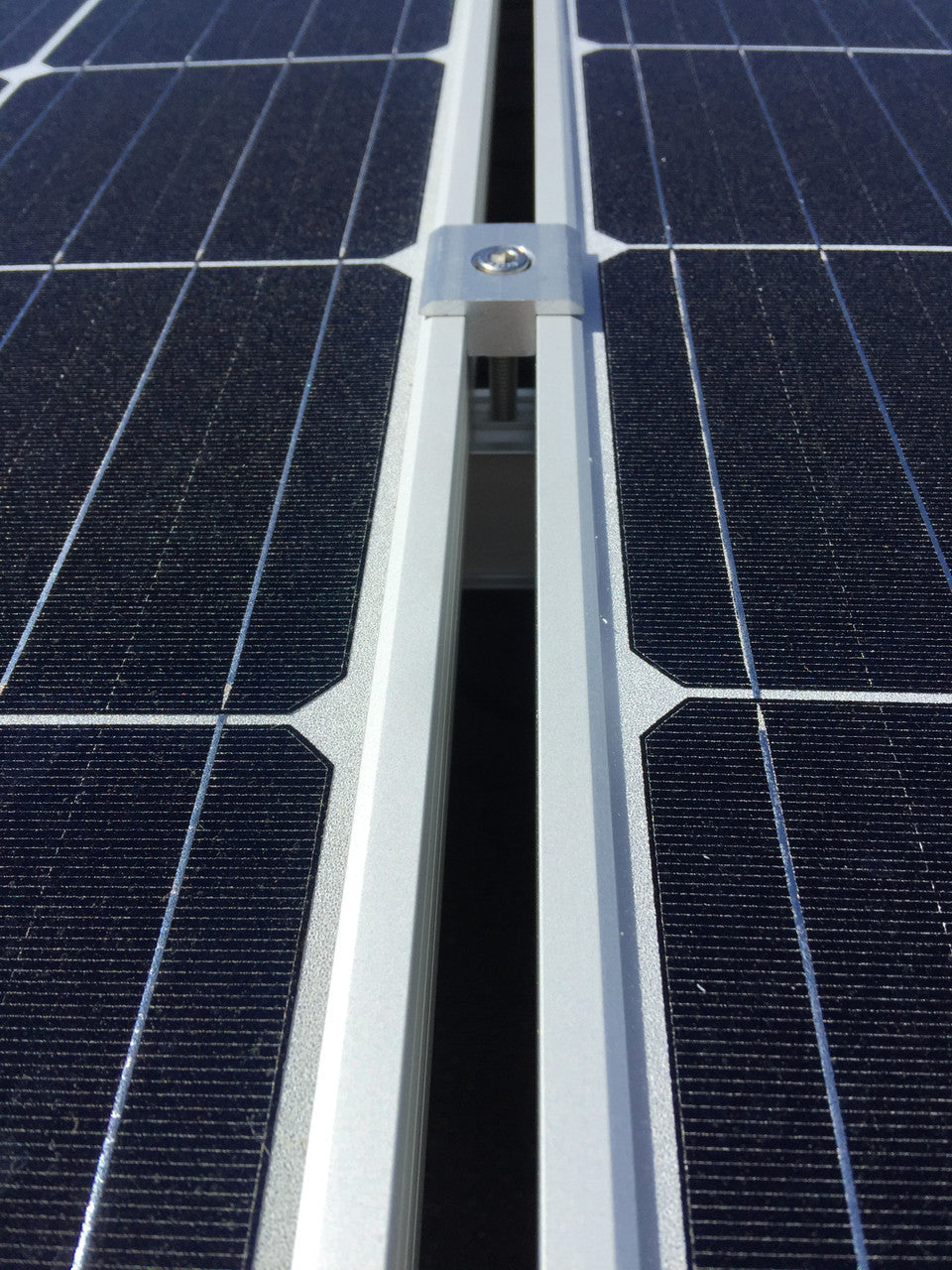

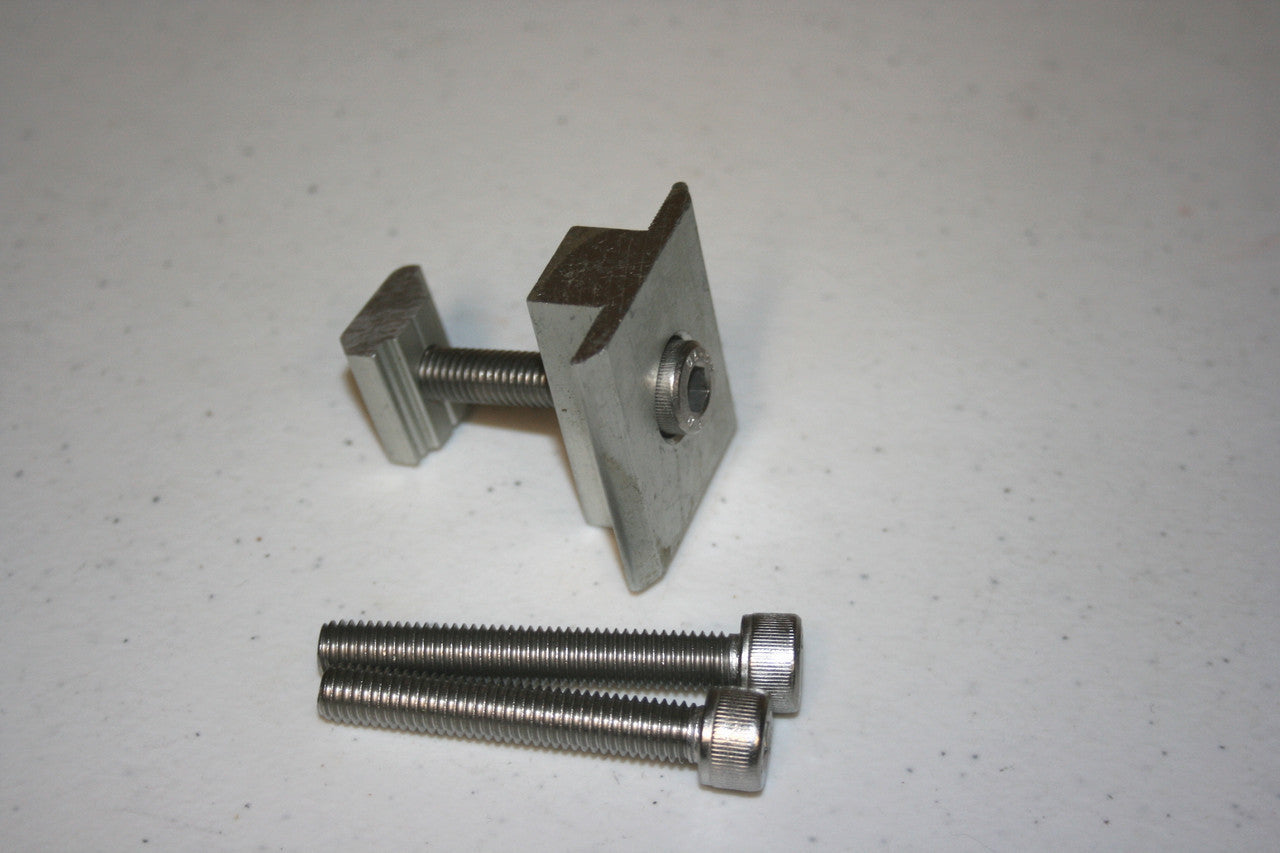

- 16- Mid Clamps (2 extra mid-clamps to mount an extra smaller solar panel)

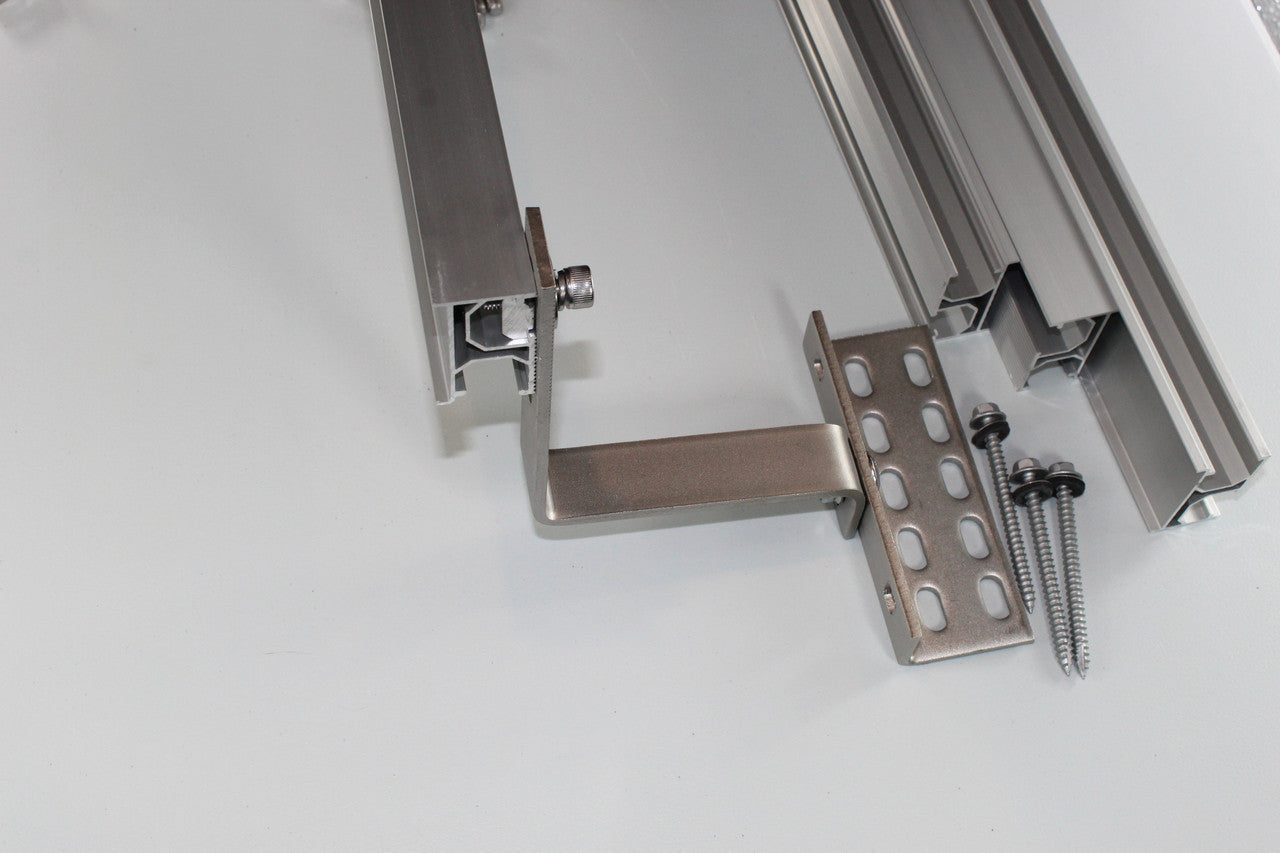

- 16- Tile Roof Mount, lag bolts, and rubber washer
- 8- Extra Bolts & Mounting Nut
- 8- Grounding Lugs
- 16- Stainless Steel Wire Clips for Cable size 10 or 12
They are all clear mill finish aluminum and the bolts are Stainless Steel.

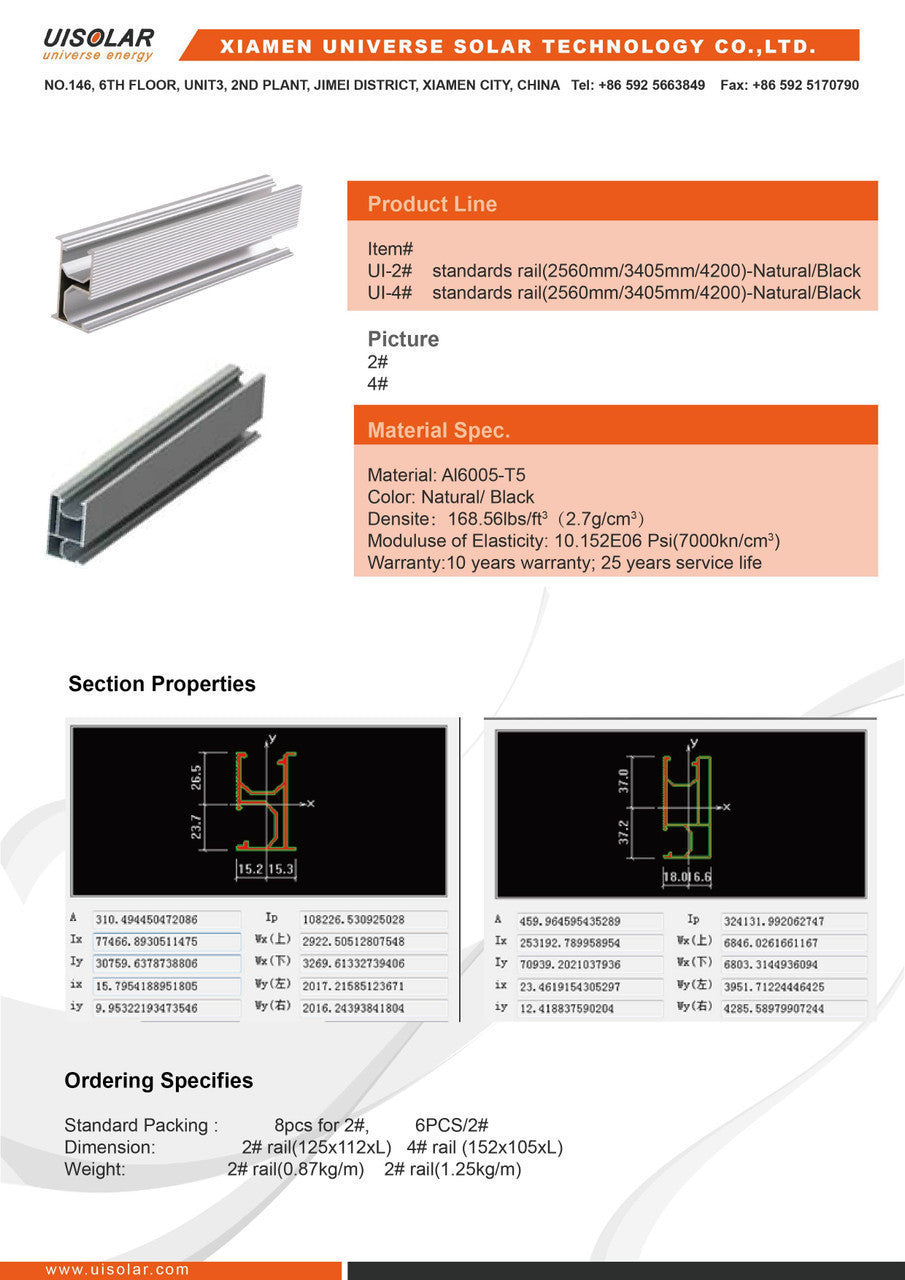

Specifications:
- Product Name:Rail Kit
- Brand Name: Planet 4 Solar (UISolar Compatible)
- Material:Aluminum 6005-T5
- Color:Silver Surface-Anodized
- Spec.:2250 mm Length or 88 Inches
- Wind Speed : 60m/s
- Snow Load:1.4KN/m2
- Standard:AS/NZS 1170; TUV
